KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Name: KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve
Brand: Kaienli manufacturing
Price: 5 USD

Brand Name : Kaienli manufacturing

Model Number : KPPCD05

Certification : available

Place of Origin : China

MOQ : 10 pieces

Price : USD 5-40 / piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2/ 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : Proportional Solenoid Valve

Valve cavity hole : TC05013

Rated pressure : P: 50 Bar, T: 30Bar

Rated flow rate : 10L/Min, see performance chart

Temperature range : -20 ℃ to 90 ℃, standard nitrile rubber seal

Response time : within 50ms, working frequency: 100Hz

Electrical interface : DT04-2P, WATERPROOF grade: IP69K

Valve Type : 3 WAY 2 POSITION with flange

Valve Voltage : DC12V/24V/13V/37V

Connector : DG / ER

Material : STEEL MADE

Origin : CHINA MAINLAND

Contact Now

Product Pictures:

KPPCD05 with mounting hole pressure reducing proportional valve, hydraulic solenoid valve instead of Thomas

Technical parameters:
Rated pressure: P: 50 bar, T: 30Bar
Rated flow rate: 10L/Min, see performance chart
Internal leakage: When P=50 bar, non charged leakage: within 30ml/Min, charged leakage: within 60ml/Min
Voltage of coil: 12V corresponds to maximum control current: 1500mA, 24V corresponds to maximum control current: 750mA
Electrical interface: DT04-2P, waterproof grade: IP69K
Temperature range: -20 ℃ to 90 ℃, standard nitrile rubber seal
Response time: within 50ms, working frequency: 100Hz
Coil: Made of metal shell with good heat dissipation performance, with a continuous charged temperature of up to 90 ℃
Filter: 125um
Medium: Mineral oil with a viscosity between 7.4 to 420 CST (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: TC05013;

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

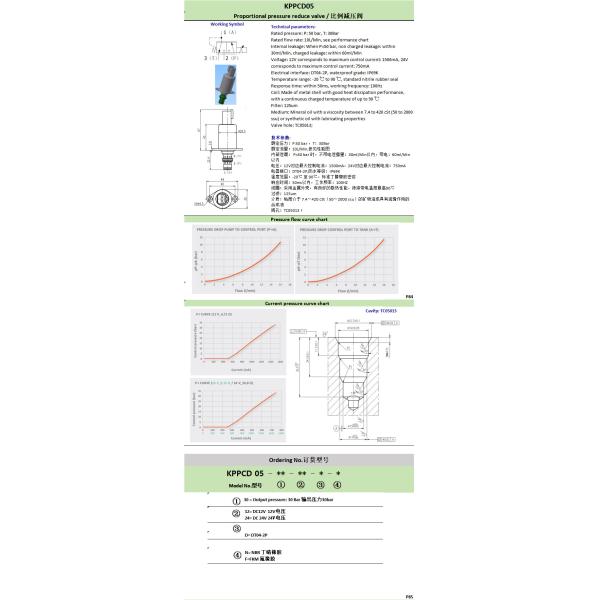

Product technical data:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Product real pictures :

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Company Exhibitions:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Our Certificate:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Product processing procedures:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Our new factory and workshop :

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Our warehouse:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Shipment:

KPPCD05 Hydraulic Proportional Pressure Reducing Valve 24V Solenoid Valve

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
